| Tên thương hiệu: | LVJOE |
| Số mẫu: | 1300fm |
| MOQ: | 1 dòng |
| giá bán: | US $20000-200000 |
| Điều khoản thanh toán: | L/C, T/T. |
| Khả năng cung cấp: | 10 dòng mỗi năm |

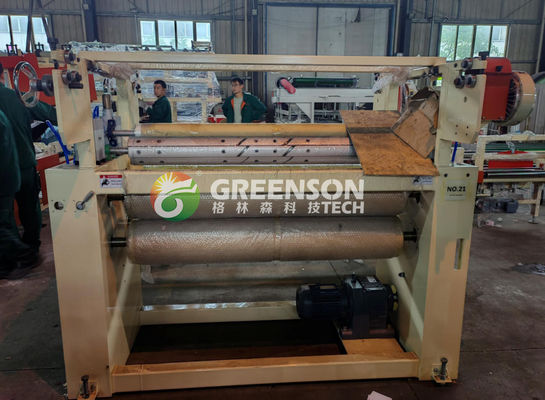

This advanced double side laminating machine is designed for producing PVC laminated gypsum boards used as ceiling tiles and partition wall panels. The fully automatic system handles fiber glass, paper, PVC film, and aluminum foil lamination with precision and efficiency.
| Attribute | Value |
|---|---|
| Finished board type | PVC laminated gypsum board |
| Effective laminating width | 1300mm |
| Electric control | PLC system |
| Production Capacity | 2-6 million Sq.m/year |
| Speed | 2-15m/min (adjustable) |
| After-sales Service | Engineers available to service |
| Warranty | 1 year |
| Glue type | Water Glue for PVC film |

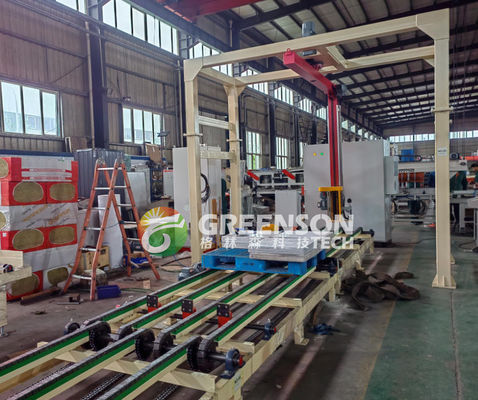

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.
Features two cutting systems (vertical/longitudinal and horizontal) with dust collection, converting 1.2×2.4m boards into 603×603mm or 595×595mm tiles.
