Gypsum Mini Ceiling Tile Making Machine Pvc False Ceiling Tile Board Making Machine Suppliers

Gypsum Mini Ceiling Tile Making Machine Pvc False Ceiling Tile Board Making Machine Suppliers

Tên thương hiệu:	LVJOE
Số mẫu:	1300FM
MOQ:	1 line
giá bán:	US $20000-200000
Điều khoản thanh toán:	L/C,T/T
Khả năng cung cấp:	10 lines per Year

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Place of Origin:

Hebei，China(Mainland)

Chứng nhận:

ISO

Product Name:

Gypsum Mini Ceiling Tile Making Machine Pvc False Ceiling Tile Board Making Machine Suppliers

Keyword:

other machinery & industrial equipment construction gypsum ceiling tile packing machine

Finished board type:

PVC laminated gypsum board

Effective laminating:

1300mm

electric control:

PLC system

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers available to service

Glue type:

Water Glue for PVC film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Làm nổi bật:

Gypsum ceiling tile making machine

PVC false ceiling tile machine

Ceiling tile board production line

Mô tả sản phẩm

Gypsum Mini Ceiling Tile Making Machine

PVC False Ceiling Tile Board Making Machine for professional manufacturing applications.

Product Specifications

Attribute	Value
Product Name	Gypsum Mini Ceiling Tile Making Machine Pvc False Ceiling Tile Board Making Machine Suppliers
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Glue type	Water Glue for PVC film

Product Description

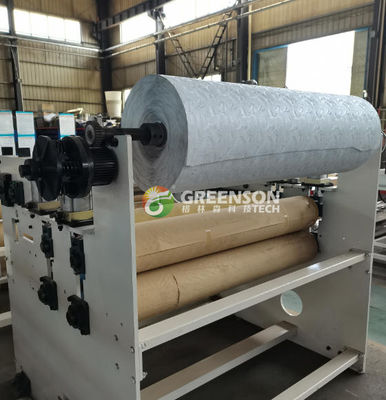

The gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board. The finished products are ideal for ceiling tiles and partition wall panels.

Automatic Gypsum Board Feeding Machine

Cylinder pushes gypsum board from stack lift platform to conveyor roll
Max. Load-bearing: 3000kg
Stroke: 1500mm
Min. Height: 620mm
Max. Height: 2000mm
Platform size: 1200*2400mm

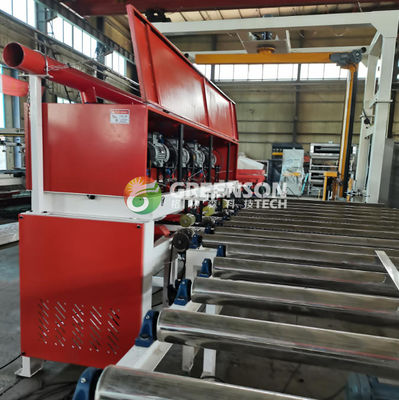

Automatic Cutting Machine

Dual cutting system: vertical/longitudinal and horizontal cutting
Equipped with dust collector system
Cuts 1.2*2.4m boards to 603*603mm/595*595mm sizes
Cutting speed: 15m/min
Cutting knives: vertical/longitudinal (3 blades), horizontal (5 blades)
Overall power: 17.15KW

Technical Specifications

Sheet thickness	5-30mm
Speed adjustment	Frequency conversion synchronous speed regulating
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode	10 layers (4 packages/layer)
Cutting mode	Lengthways: 3 blades, Horizontal: 5 blades
Overall dimension	Length: 56000mm, Width: 9200mm
Lamination mode	Double side (laminate front and back simultaneously) or Single side
